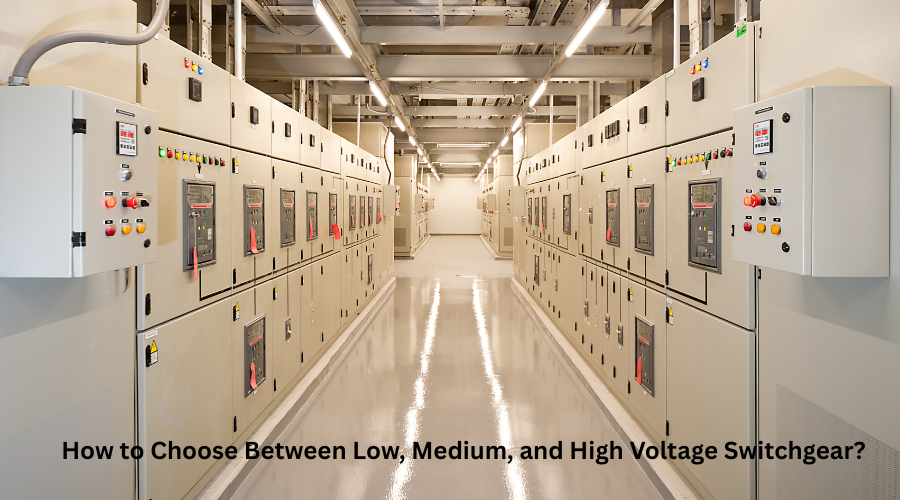

How to Choose Between Low, Medium, and High Voltage Switchgear?

Selecting the right type of switchgear for your electrical system isn't just a matter of technical specs—it's about making the right long-term decision for safety, efficiency, and system performance. With so many choices available, understanding the distinctions between low, medium, and high voltage switchgear can feel overwhelming. But once you break it down, the decision becomes much clearer.

In this comprehensive guide, we'll walk you through what each type of switchgear offers, where it fits best, and how to confidently choose the most suitable option for your application.

What Is Switchgear and Why Is It Important?

Before diving into voltage classifications, let's quickly cover the basics.

Switchgear refers to a group of electrical isolation switches, fuses, or circuit breakers designed to manage, protect, and disconnect electrical devices. It's a central component in power systems—whether you're managing an industrial plant, a commercial facility, or a utility network.

Well-selected switchgear ensures:

Safe operation of electrical systems

Reliable power delivery

Protection of equipment and personnel from electrical faults

Now let's explore how voltage levels determine the type of switchgear and where each is best applied.

Understanding the Voltage Categories

The main distinction between low, medium, and high voltages switchgear is in the voltage range for which they are designed:

Low Voltage (LV): Up to 1,000 volts (typically 230V to 690V)

Medium Voltage (MV): Between 1kV and 36kV

High Voltage (HV): Above 36kV, going up to hundreds of kilovolts

Each category serves different purposes, environments, and equipment needs. Let's explore them in detail.

Low Voltage Switchgear: Compact and Commonplace

Where it fits best: Residential, commercial buildings, small-scale industries

Low voltage switchgear is the most commonly used category because it operates within the range of standard distribution voltages. You'll find it in:

Office buildings

Shopping centers

Residential complexes

Small manufacturing units

Advantages:

Compact and cost-effective

Easier to install and maintain

Safer handling due to lower electrical risk

Wide availability of parts and configurations

Common components:

Molded case circuit breakers (MCCBs)

Air circuit breakers (ACBs)

Contactors and overload relays

When to choose it:

 If your electrical system operates within a low voltage range and prioritizes ease of maintenance, lower costs, and user safety, this is your go-to option.

Medium Voltage Switchgear: The Industrial Workhorse

Where it fits best: Big business shopping centers, factories, hospitals, and power substations Medium voltage switchgear plays an important role in the link between generation and consumption. It has a more significant power and suits the equipment that needs a higher voltage to work.

Advantages:

Supports larger loads than low voltage gear

Offers greater system reliability

Often integrates advanced protection and control systems

Common components:

Vacuum circuit breakers (VCBs)

Gas-insulated switchgear (GIS)

Load break switches (LBS)

Applications:

Power distribution within industrial facilities

Backup generators and grid-tied systems

Utility substations at the distribution level

When to choose it:

Opt for medium voltage switchgear if your infrastructure needs reliable power distribution with minimal downtime and the ability to handle more robust electrical loads.

High Voltage Switchgear: Powering the Grid

Where it fits best: Power generation stations, high-voltage substations, national grid infrastructure

High voltage switchgear is designed to carry electricity in large amounts, either at large distance or at high voltages. This kind of switch gear is central to the stability of grid and the flow of energy between cities and regions.

Advantages:

Handles very high electrical loads

Advanced fault detection and isolation capabilities

Designed for long-distance energy transfer

Common components:

SF6 circuit breakers

Disconnectors

Gas-insulated switchgear (GIS)

Current and voltage transformers

Applications:

National power grids

Power plants

Transmission substations

When to choose it:

 If your operation deals with high-voltage transmission or generation, this category is essential for ensuring safe and stable system performance.

For more details you can read our blog:

what are the type of switches?

Key Factors to Consider When Choosing Between Voltage Levels

While voltage classification is important, you should also factor in:

1. Load Requirements

It is important to know how much maximum and continuous load you will handle. Being too specific is expensive, and too insufficient could be disastrous to the system.

2. Safety Needs

The higher the voltage, the greater the safety risks. Medium and high voltage switchgear require trained personnel and advanced safety protocols.

3. Environment

Is the system prone to dust/, moisture, or very hot temperatures? Severe conditions can require gas-sealed or gas-insulated systems to provide performance and safety.

4. Maintenance and Operation

Low voltage switchgear is typically easier to maintain, while medium and high voltage systems often need scheduled inspections and specialist attention.

5. Budget and Scalability

Budget is always a constraint. However, selecting switchgear with scalability options can reduce future expansion costs.

Making the Final Decision

Choosing the right type of switchgear involves more than just matching voltage levels—it's about balancing your needs for safety, performance, and cost-efficiency. The best approach is to evaluate your application, consult with experienced professionals, and plan for future growth.

If your project is a commercial building with predictable loads, low voltage switchgear is likely sufficient. In case, you have variable demand and are running a manufacturing plant, then medium voltage gear could be the wiser option. High voltage switchgear is a non-negotiable high voltage switchgear when it comes to grid-level systems or power generation.

Conclusion

The selection of low, medium, or high voltage switchgear is a lower-level Tactical decision that will affect both the safety and efficiency and the potential scalability of the electrical infrastructure. Being aware of the features, usages, and disadvantages of each of them, you can select the service that could best suit your research purposes.

To be on a safe side, you may turn to technical experts or to a supplier who has experience in what you want to invest in to make a bog-off investment.

FAQs

Q1: Can I upgrade from low voltage to medium voltage switchgear later?

 Yes, but it typically involves significant system redesign, including transformers, cabling, and safety protocols. It's best to plan for potential scalability from the start.

Q2: Is high voltage switchgear ever used in commercial buildings?

 Rarely. High voltage switchgear is typically reserved for utility-scale projects and industrial infrastructure due to complexity and cost.

Q3: How often should medium voltage switchgear be maintained?

 A routine inspection is recommended annually, with major servicing every 3–5 years, based on application and environment.

Q4: What are the common failure causes in switchgear systems?

 Failures often stem from insulation breakdown, moisture ingress, poor maintenance, or aging components.

Q5: How do I determine the voltage class of my existing system?

 Check your main service equipment's specifications or consult your electrical engineering team. Voltage class is usually labeled on the gear itself or in system diagrams.
